Caroma Slimline Connector Cistern

Caroma Slimline 4.5/3L Cistern with Seat & Link

 A stylish 4.5/3 litre (adjustable to 6/3 or 9/4.5 litres) dual flush integrated plastic cistern and toilet seat with an integrated low profile connection plate to conceal the flush pipe. Suitable for multipurpose applications and can be used where authorised for septic installations.

Features low profile lid design, with chrome bezel and buttons.

• WELS 4 star rated, 4.5/3L Smartflush®
• Bottom inlet
• Includes Tasman wide seat and link piece
• Adjustable to 6/3L or 9/4.5L
• Low level installation
• White plastic
• To achieve a WELS 4 star rating this cistern should be installed with 4/3.5L connector Smartflush® pan

Slimline Cistern: A one piece injection moulded tank with a well fitting removable lid housing the centrally located push buttons.

Cistern Mechanism: The cistern incorporates a quiet inlet valve to reduce noise during the filling cycle. The dual flush outlet valve is operated by two push buttons which offer the choice of half flush or full flush when required. The flush volume of the 6/3 litre cistern can be easily field converted to 9/4.5 litre.

Inlet and Overflow: The inlet valve is in the RH position and is located on the underside of the cistern and is interchangeable. Overflow is internal as standard.

Fixing: Two keyhole-slot fixing holes make cistern mounting fast and simple.

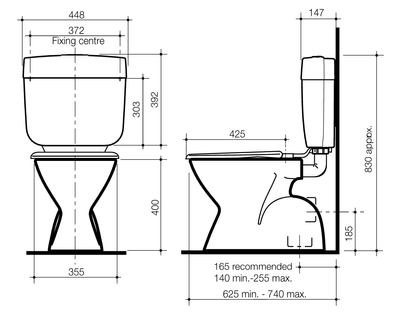

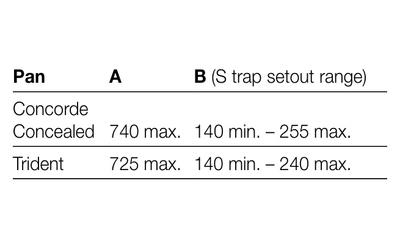

Matched Pans: The Slimline cistern has been designed primarily to operate at optimum performance with the Caroma Concorde Concealed and Trident pans, however, it is also suitable for any matched pans conforming to the Australian Standard.
